At G. J. Lighting Tower Co., we design and manufacture premium-quality octagonal poles that combine strength, durability, and modern aesthetics. Built from hot-dip galvanized mild steel, our poles are made to withstand high wind loads, corrosion, and tough environmental conditions — ideal for long-term outdoor performance.
The octagonal design ensures better structural balance and space efficiency, making these poles a preferred choice for street, highway, and industrial lighting needs.
Key Features
- Height range available from 3 to 14 meters, customizable as per project requirements
- Manufactured using mild steel with hot-dip galvanization for superior durability
- Tapered single-piece octagonal design for enhanced structural performance
- Lockable access door for safe and easy maintenance of internal wiring
- Corrosion-resistant finish suitable for all-weather conditions
- Built in accordance with IS and BIS standards
Applications and Usability
Octagonal poles from G. J. Lighting Tower Co. are widely used across various infrastructure and development projects. These include:

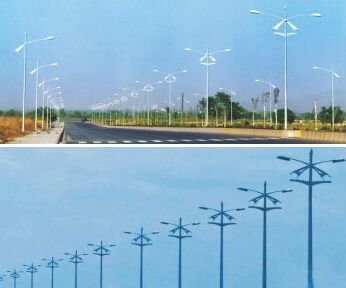

- Street and highway lighting for city roads, expressways, and flyovers
- Lighting for industrial zones, factory perimeters, and logistics hubs
- Urban infrastructure and smart city development
- Garden and park lighting, decorative installations, and landscaped areas
- Public venues such as stadiums, marketplaces, and community grounds
- Mounting solutions for CCTV surveillance, signage, banners, and solar panels
Designed for quick installation, low maintenance, and high performance, these poles meet the lighting and structural needs of both rural and urban environments, including high-stress zones like coastal regions and highways.
| Type | Height | Section Length | Top Across Flat | Bottom Across Flat | Thickness | Sq. Base Plate Size x Thk | PCD | Foundation Bolt Size | No. of Bolt |
|---|---|---|---|---|---|---|---|---|---|
| GJP 3.0 39 | 3000 | 3000 | 55 | 110 | 3.0 | 200 x 12 | 200 | M16 x 400 | 4 |
| GJP 4.0 39 | 4000 | 4000 | 55 | 110 | 3.0 | 200 x 12 | 200 | M16 x 500 | 4 |
| GJP 5.0 39 | 5000 | 5000 | 60 | 125 | 3.0 | 200 x 12 | 200 | M16 x 600 | 4 |
| GJP 6.0 39 | 6000 | 6000 | 70 | 130 | 3.0 | 200 x 12 | 220 | M20 x 600 | 4 |
| GJP 6.5 39 | 6500 | 6500 | 70 | 130 | 3.0 | 200 x 12 | 220 | M20 x 600 | 4 |
| GJP 7.0 39 | 7000 | 7000 | 75 | 135 | 3.0 | 200 x 12 | 220 | M20 x 700 | 4 |
| GJP 8.0 39 | 8000 | 8000 | 76 | 150 | 3.0 | 250 x 12 | 250 | M20 x 800 | 4 |
| GJP 8.5 39 | 8500 | 8500 | 76 | 150 | 3.0 | 250 x 12 | 250 | M20 x 800 | 4 |
| GJP 9.0 39 | 9000 | 9000 | 76 | 155 | 3.0 | 260 x 12 | 260 | M24 x 700 | 4 |
| GJP 10.0 39 | 10000 | 10000 | 90 | 185 | 3.0 | 300 x 16 | 300 | M24 x 800 | 4 |
| GJP 11.0 39 | 11000 | 11000 | 90 | 200 | 4.0 | 300 x 20 | 300 | M24 x 800 | 4 |
| GJP 12.0 39 | 12000 | 12000 | 100 | 210 | 4.0 | 320 x 20 | 320 | M24 x 900 | 4 |
| GJP 12.5 39 | 12500 | 12500 | 100 | 210 | 4.0, 4.0 | 320 x 20 | 320 | M24 x 900 | 4 |
| GJP 12.5 39 | 12500 | 6450 | 100 | 210 | 4.0, 4.0 | 320 x 20 | 320 | M24 x 900 | 4 |
| GJP 13.0 39 | 13000 | 6700 | 100 | 220 | 4.0, 4.0 | 350 x 25 | 350 | M27 x 900 | 4 |
| GJP 14.0 39 | 14000 | 7200 | 225 | 220 | 4.0, 4.0 | 350 x 25 | 350 | M27 x 900 | 4 |
