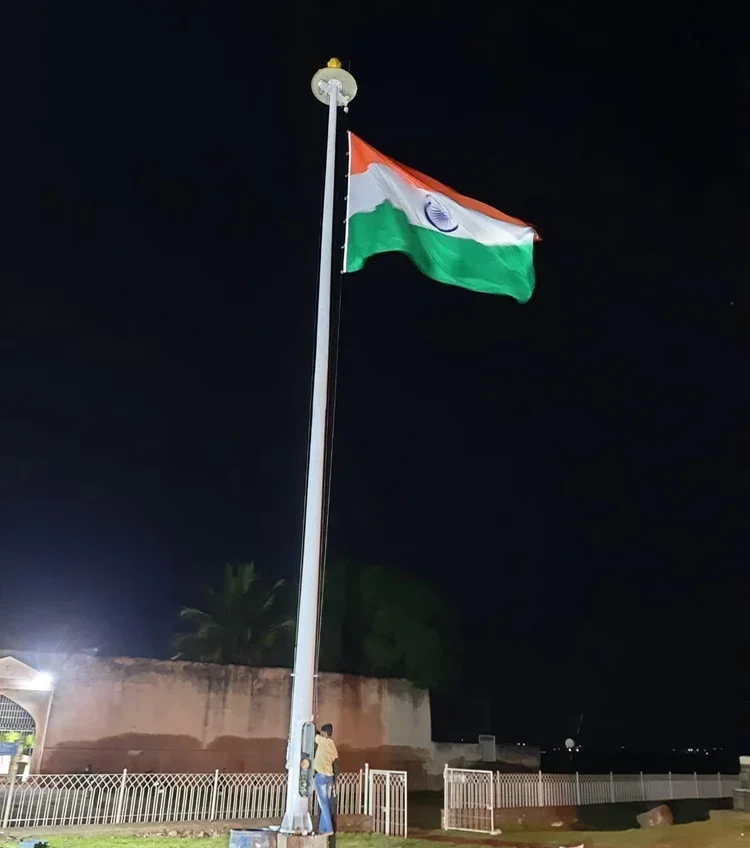

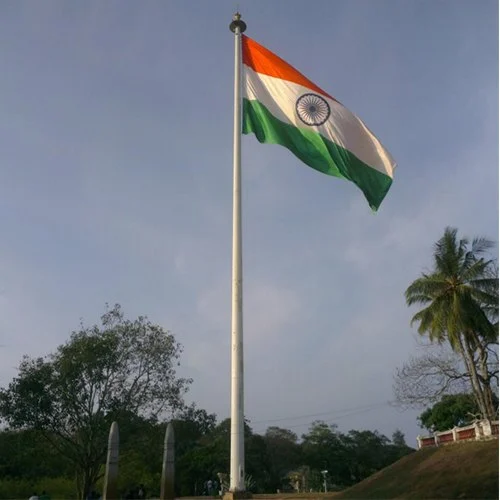

At G. J. Lighting Tower Co., we proudly design and manufacture Flag High Mast Poles that symbolize national pride, corporate identity, and civic dignity. Engineered for structural strength and visual impact, our flag masts are ideal for displaying large flags at public spaces, government buildings, corporate parks, and memorials.
Crafted using high-grade steel and fabricated with precision, our flag masts are built to withstand strong wind loads, heavy-duty usage, and long-term exposure to environmental conditions. Each mast is designed for smooth operation, with sturdy winch systems and stainless-steel wire ropes for raising and lowering the flag safely.
Technical Specifications
• Material: Hot rolled MS plate/strip as per IS 5986 / BSEN 10025
• Yield Strength: Minimum 355 MPa
• Ultimate Strength: Minimum 510 MPa
• Base Plate: As per IS 2062 Gr Fe – 410
• Winch System: Manual or motorized option with locking mechanism
• Wire Rope: Stainless Steel (7/19 construction, AISI 316 grade)
• Height Options: Available in 20m to 40m or as per requirement
• Finish: Hot-dip galvanized (IS 4759 / BSEN 1461), internally and externally
• Foundation Bolts: High tensile steel, UTS min. 415 MPa
Applications and Usability
Our flag high masts are widely used in:
• National flag displays in public squares and parks
• Government institutions and municipal headquarters
• Corporate campuses and commercial landmarks
• Stadiums, railway stations, and airports
• Memorial grounds and ceremonial areas
